How to Use PowerVoip with your SIP device
You need a PowerVoip username and password in order to call via our network. So first sign up with PowerVoip by downloading and installing the application and create your login.
You can use PowerVoip with the following types of Sip devices:
- SIP ATA (Analogue Telephone Adapter)
- SIP Router
- xDSL Modem

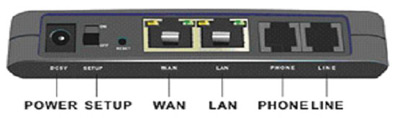

The most devices are equipped with a combination of the following ports.

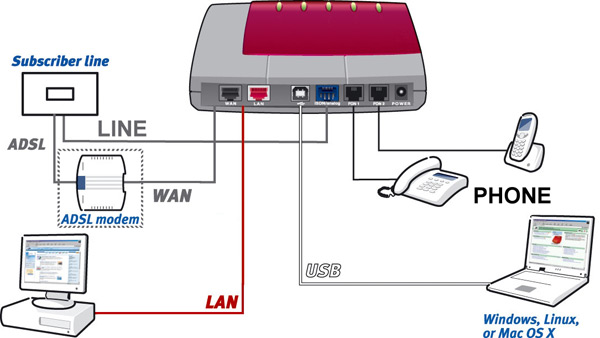

Example 1
(this is merely an example layout, every type of device can be different)
Example 2
(this is merely an example layout, every type of device can be different)
(this is merely an example layout, every type of device can be different)
- (A)DSL: connect your line from your (A)DSL provider (not available on a ATA)
- WAN: connect your line from your xDSL modem/router
- LAN: port for your (home) network, you can connect e.g. your PC, lap-top, network-printer or wireless router
- PHONE: here you can connect your analogue telephone
- LINE: connect your analogue (PSTN) telephone line
- USB: you can connect PC or lap-top with a free USB port
Some SIP devices have more than one LAN port and/or PHONE port available.
For the hardware connections from your SIP device look at the above information and your user manual. After connecting the hardware you have to make sure that your software is installed and configured the right way.
Software configuration for PowerVoip
General |
|
|---|---|
|
SIP port : 5060 |
|
|
Registrar : sip.powervoip.com |
|
|
Proxy server : sip.powervoip.com |
|
|
Outbound proxy server : leave empty |
|
Account name : your PowerVoip username |
|
Password : your PowerVoip password |
|
Display name/number : your PowerVoip username or voipnumber |
|
Stunserver (option) : stun.powervoip.com |
Below are some examples of the software configuration of various popular SIP devices. Please also consult the manual that came with your SIP device
-
(click here to expand)AVM Fritz!box FON 7050
Fill in the following settings: -
Internet number: your PowerVoip username (if available) -
User Name: fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Password: fill in your password, this is the password you used for the registration of your PowerVoip-account
-
Password confirmation: fill in your password again
-
Registrar: this is sip.powervoip.com
-
Proxy server: this is sip.powervoip.com
-

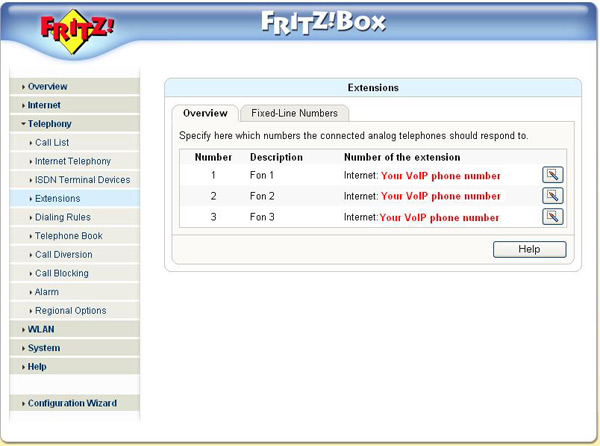

Overview - number 1, 2 or 3: your VOIP phone number (if available)
-
-

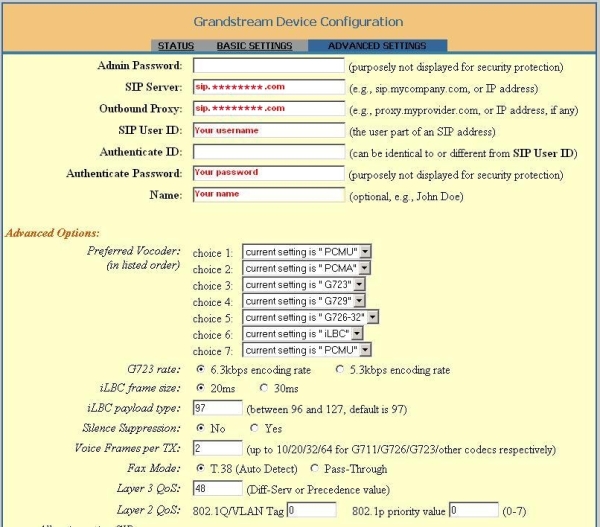

(click here to expand)GRANDSTREAM HT286
Fill in the following settings: -
SIP server : fill in sip.powervoip.com
-
Outbound proxy : this is sip.powervoip.com
-
SIP User ID : fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Authenticate Password : your password, this is the password you used for the registration of your PowerVoip-account
-
Name : you can fill-in your name, this name will be displayed in the phone screen of the person you are calling
-
Don't change the Advanced Options
-
-

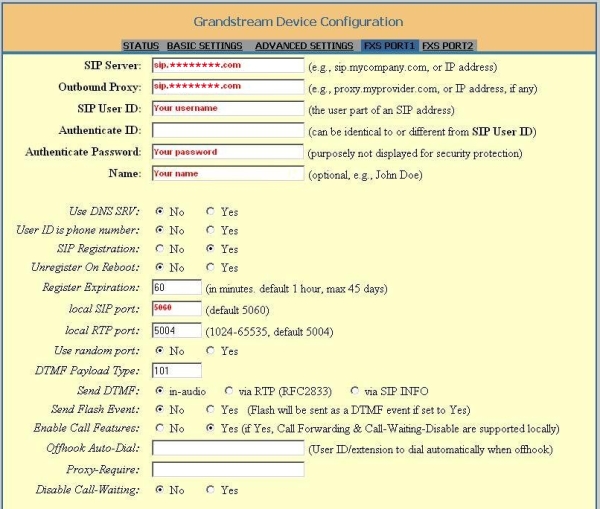

(click here to expand)GRANDSTREAM HT386
Fill in the following settings: -
SIP Server : fill in sip.powervoip.com
-
Outbound Proxy : this is sip.powervoip.com
-
SIP User ID : fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Authenticate Password : your password, this is the password you used for the registration of your PowerVoip-account
-
Name : your name, this name will be displayed in the phone screen of the person you are calling
-
Local SIP port : fill in 5060
-
Don't change the other options
-
-

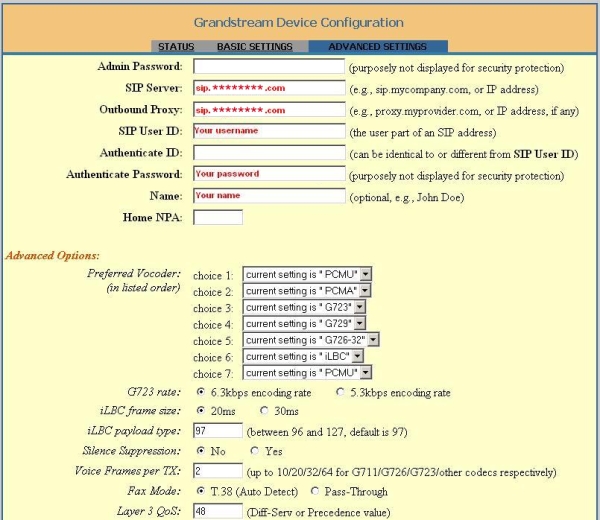

(click here to expand)GRANDSTREAM HT486
Fill in the following settings: -
SIP Server : fill in sip.powervoip.com
-
Outbound Proxy : this is sip.powervoip.com
-
SIP User ID : fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Authenticate Password : your password, this is the password you used for the registration of your PowerVoip-account
-
Name : you can fill-in your name, this name will be displayed in the phone screen of the person you are calling
-
Don't change the Advanced Options
-
-

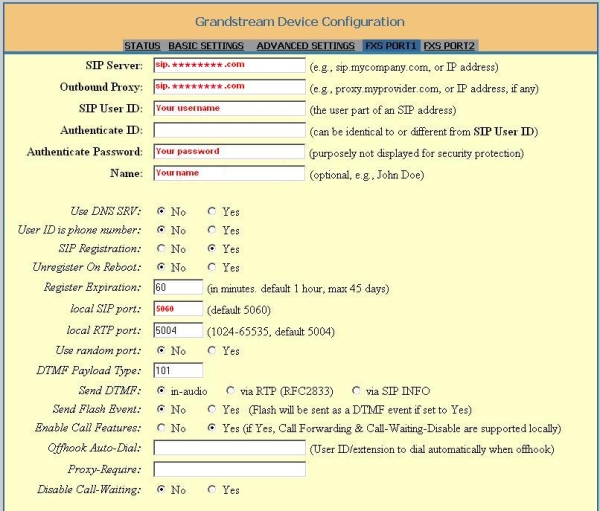

(click here to expand)GRANDSTREAM HT496
Fill in the following settings: -
SIP server : fill in sip.powervoip.com
-
Outbound Proxy : this is sip.powervoip.com
-
SIP User ID : fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Authenticate Password : your password, this is the password you used for the registration of your PowerVoip-account
-
Name : your name, this name will be displayed in the phone screen of the person you are calling
-
Local SIP port : fill in 5060
-
Don't change the other options
-
-

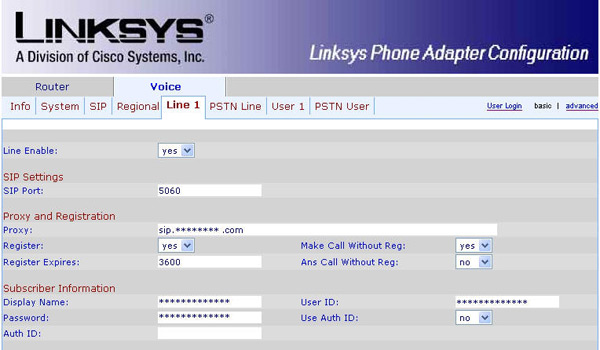

(click here to expand)LINKSYS SPA3102
Fill in the following settings: -
Line Enable: Yes
-
SIP Port : portnumber 5060
-
Proxy: fill in sip.powervoip.com
-
Register: this is 'Yes'
-
Make Call Without Reg: fill in 'Yes'
-
Register Expires: this is 3600 seconds
-
Ans Call Without Reg: fill in 'No'
-
Display name: you can fill-in your name, this name will be displayed in the phone screen of the person you are calling
-
User ID: fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Password: fill in your password, this is the password you used for the registration of your PowerVoip-account
-
Use Auth ID: set to 'No'
-
-

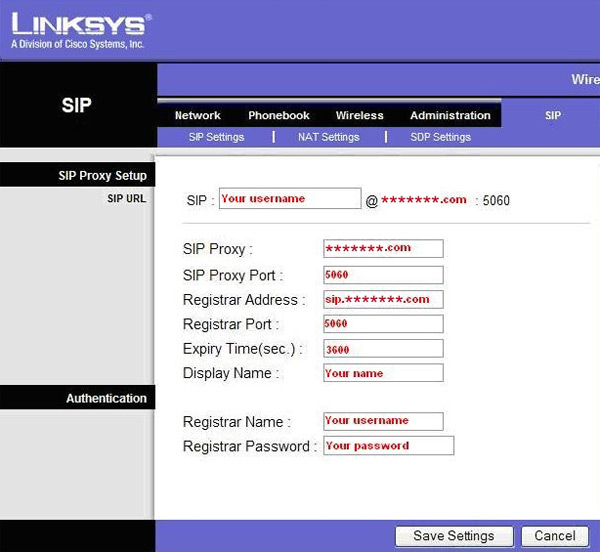

(click here to expand)LINKSYS WIP330
Fill in the following settings: -
SIP Proxy: fill in powervoip.com
-
SIP Proxy Port: this is port number 5060
-
Registrar Address: this is sip.powervoip.com
-
Registrar Port: this is port number 5060
-
Expiry Time(sec): this is 3600 seconds
-
Display name: you can fill-in your name, this name will be displayed in the phone screen of the person you are calling
-
Registrar Name: your username, this is the username you used for the registration of your PowerVoip-account
-
Registrar Password: your password, this is the password you used for the registration of your PowerVoip-account
-
-

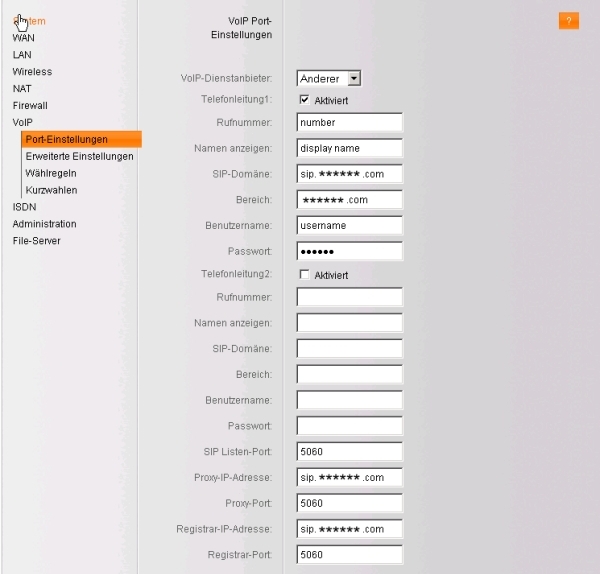

(click here to expand)SIEMENS SX553
Fill in the following settings: -
Rufnummer : your PowerVoip username
-
Namen anzeigen : you can fill in your name
-
SIP-Domäne : fill in sip.powervoip.com
-
Bereich : this is powervoip.com
-
Benutzername : fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Passwort : fill in your password, this is the password you used for the registration of you PowerVoip-account
-
SIP Listen-Port : this is port 5060
-
Proxy-IP-Adresse : fill in sip.powervoip.com
-
Proxy-Port : this is port 5060
-
Registrar-IP-Adresse : sip.powervoip.com
-
Registrar-Port : this is port 5060
-
-

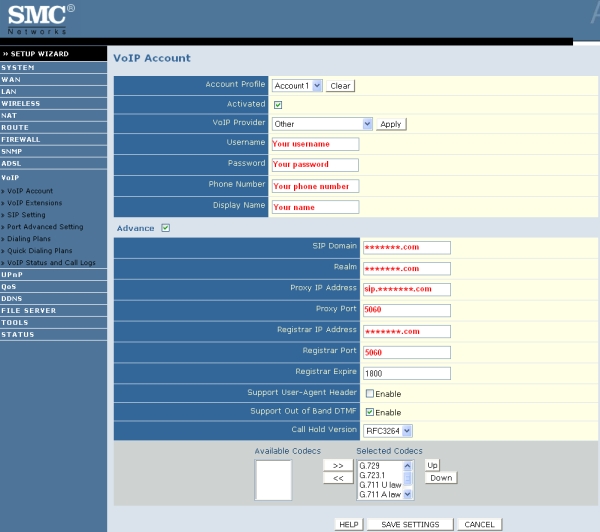

(click here to expand)SMC 7908 VoWBRA
Fill in the following settings: -
Username : fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Password : fill in your password, this is the password you used for the registration of your PowerVoip-account
-
Phone Number : your PowerVoip username
-
Display Name : you can fill in your name
-
SIP Domain : this is powervoip.com
-
Realm : fill in powervoip.com
-
Proxy IP Address : this is sip.powervoip.com
-
Proxy Port : this is port 5060
-
Registrar IP Address : this is powervoip.com
-
Registrar Port : this is port 5060
-
-

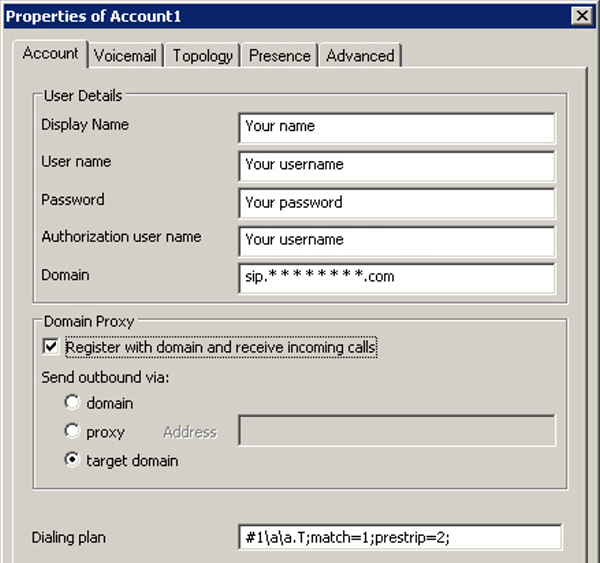

(click here to expand)X-lite v3.0 Software
Fill in the following settings: -
Display Name : fill in your your name, this name will be displayed in the phone screen of the person you are calling
-
User name : fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Password : fill in your your password, this is the password you used for the registration of your PowerVoip-account
-
Authorization user name : same as User name
-
Domain : fill in sip.powervoip.com
-
-

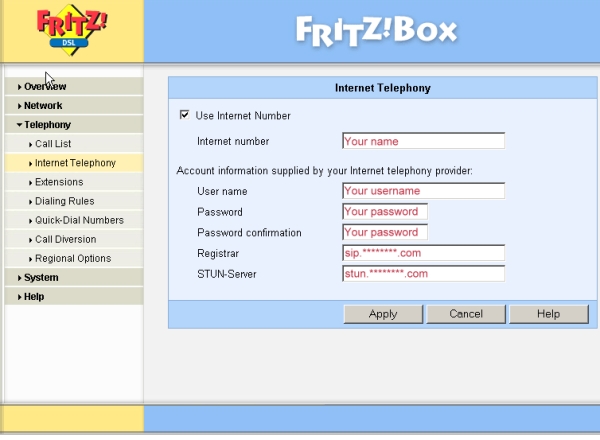

(click here to expand)AVM Fritz!box FON ATA 1020
Fill in the following settings: -
Internet number: you can fill-in e.g. your name or telephone number
-
User name: fill in your username, this is the username you used for the registration of your PowerVoip-account
-
Password: fill in your password, this is the password you used for the registration of your PowerVoip-account
-
Password confirmation: fill in your password again
-
Registrar: this is sip.powervoip.com
-
STUN-Server: this is stun.powervoip.com
-
|
Codecs |
|
|
G.711 |
|
G.726 |
|
G.729 |
|
ILBC |
If you have audio problems:
Use a STUN server (e.g. stun.powervoip.com) with port 3478 (if supported by your device)
Use the G.711 codec
